DAR
Number of Crossbars Required
Determine the number of additional crossbars required based on the length and resolution of the F3SN-A light curtain.
F3SN-A
P14-
F3SN-A
P25/40/70-
Dimension C2 (Protective height): 4 digits in the part number
Dimension A = C2 + 86
Dimension B = C2+ 54
Dimension D = 15.5
Dimension E = C2 - 9
Dimension F = See the table below.
Dimension P = 9
Dimension C1 (Protective height): 4 digits in the part number
Dimension A = C1 + 64
Dimension B = C1 + 32
Dimension D = 18.5
Dimension E = C1 - 37
Dimension F = See the table below.
Dimension P = 15
Note
If value F obtained from the equation (provided here) is
not used, set F to 670 mm or less.
Note
If value F obtained from the equation (provided here) is
not used, set F to 670 mm or less.
Protective height (C2)
to 0620
0621 to 1125
No. of intermediate
mounting brackets
0
1
Dimension F
(See note.)
F=B/2
Protective height (C2)
to 0640
0641 to 1280
No. of intermediate
mounting brackets
0
1
Dimension F
(See note.)
F=B/2

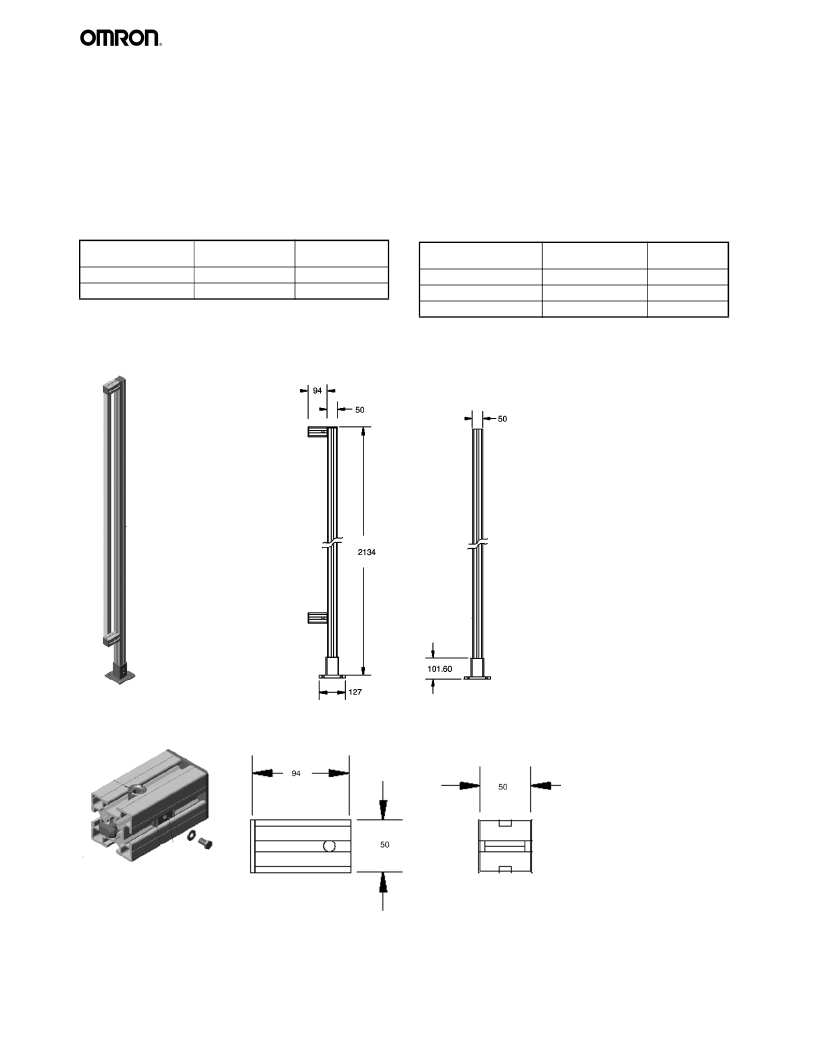

DAR-ST-2-5-Y Stand
The Stand is shown with F3SN-A attached.
DAR-CB90-Y Crossbar
The Crossbar is shown with the Mounting Bolt.
5
1281 to 1822
2
F=B/3
